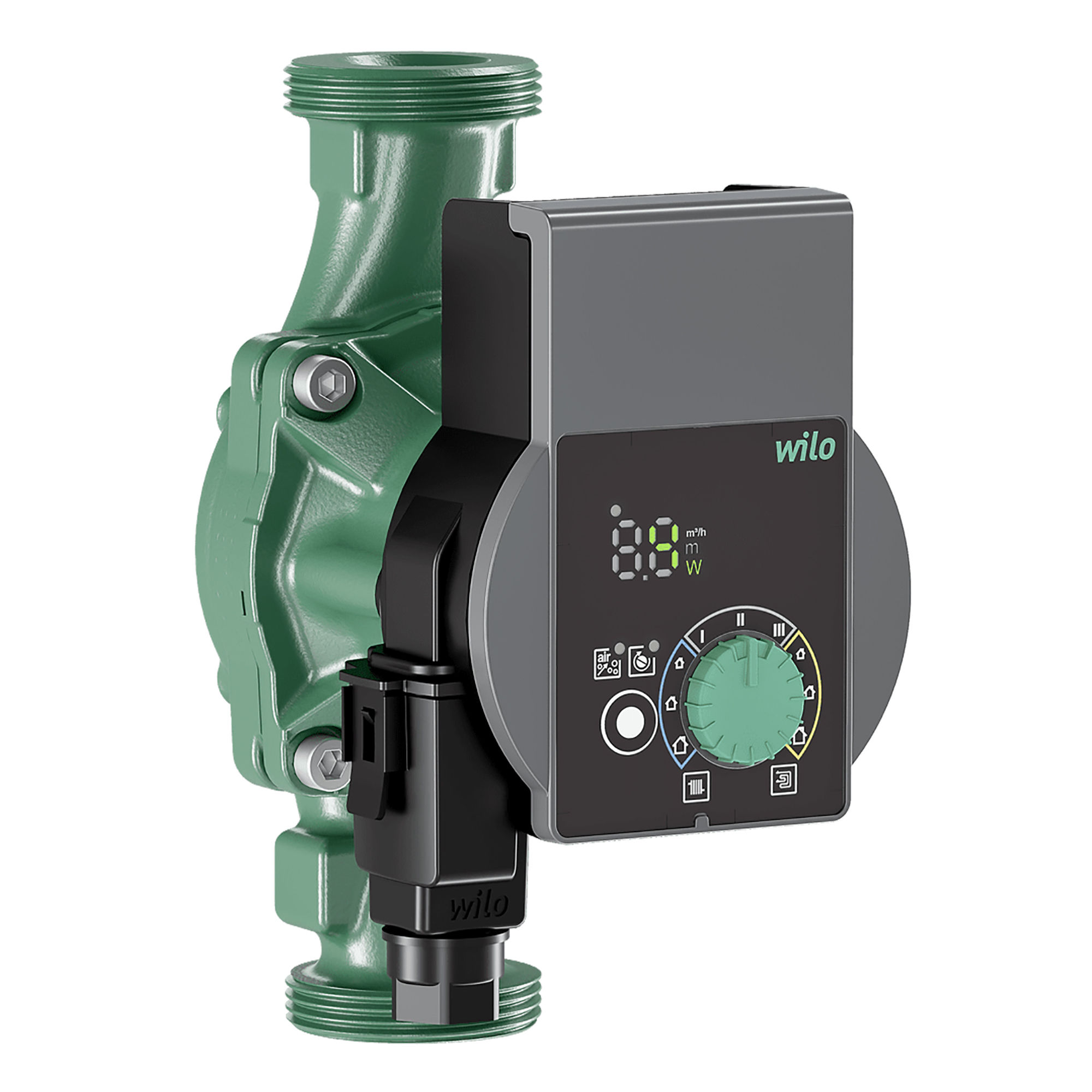

Wilo Yonos PICO 25/1-6-130 Circulating Pump 230V - 4215516

Ref: HCON253

  • 3 speed stages
  • Simple operation
  • High efficiency
  • Electronic power control for precise accuracy setting in 0.1m steps
  • LED display shows the current consumption in watts and the flow rate in m³/h
  • Individual settings for radiators and underfloor heating
  • Compact, standardised design
  • EC motor technology
  • Maintenance-free glandless circulator with screwed connection
  • Head max: 6.0m
  • Flow max: 3.6m³/h
  • Pump connection: 1 1/2" BSP
  • Port to port length: 130mm
  • Max operating pressure: 10 bar
  • Mains connection: 1~230V, 50/60Hz
  • Power consumption: 4-40W
  • Weight (approx.): 1.9kg
  • 5-year manufacturer guarantee
  • MPN: 4215516
ALL Central Heating Pumps ALL Water Pumps
Login or Register to view trade prices
Quantity:
Delivering to:
Collecting from:
Select a branch to continue

OVERVIEW

Wilo glandless high-efficiency circulating pump with improved energy saving operation compared to previous models. The Wilo Yonos PICO features an intuitive user interface that can be simply controlled via the central green operating button. This allows setting in precise 0.1m steps for both radiators and underfloor heating. The user-friendly design of the pump also allows for fast installation. Additionally, the automatically and manually triggered restart or pump venting function enables easy maintenance and a high degree of operational reliability.

Pre-selectable control modes for optimum load adjustment: Differential pressure constant (Δp-c), differential pressure variable (Δp-v) and constant speed (3 pump curves).

Application: All hot water heating systems, air conditioning applications and industrial circulation systems.

SPECIFICATION

Brand Wilo
Manufacturer's Part Number (MPN) 4215516
GTIN (Barcode) 4048482758480
